No more wooo wooo noise

Discussion in 'Mazdaspeed 3 Transmission/Drivetrain' started by Ahmed Bahgat, Nov 1, 2022.

Watchers:
4 users.
  1. Ahmed Bahgat

    Ahmed Bahgat Greenie Member

    Joined:
    Sep 12, 2022
    Posts:
    11
    Trophy Points:
    3
    Location:
    Australia
    Ratings:
    +6 / -0
    Hello all

    I finally managed to put an end to the dreadful woo woo noise when you have the steering wheel full turn on very low speeds

    The cause is known, it is coming from the LSD which uses clutch pack to differentiate the front axle left and right wheels speed, the clutch pack get worn after many years of driving and no solution for it other than replacing the diff

    The same OEM diff in Australia will cost 6.5 K and is not available anymore, also there was no clutch pack available to the diff and the only offer I had was to retention the spring that pushes on the two side gears

    So, I planned to change the diff with a non-clutch pack LSD, I got one from Quaife in the UK, which is lifetime warranty and service free, it is a helical ATB (Automatic Torque Bias) differential, which produces no noise whatsoever

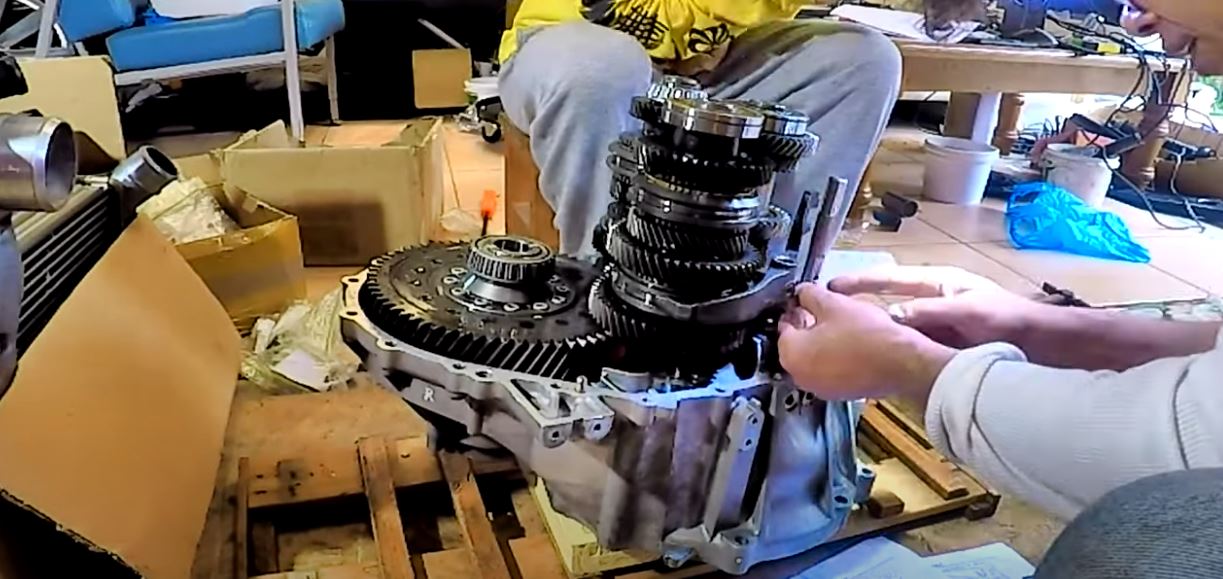

    I took the gearbox off the car myself and managed to dismantle and change all bearings inside it myself along with the new Quaife diff

    No woo woo sound now, and the car even feels much better and more stable while cornering on any speed, the torque steering almost eliminated and the car now follows a line while cornering that is less in both over and under steering, could not be much happier and doing the job DYI is actually not that hard and will be happy to provide all the info required regarding all parts, tools and how you do the job perfectly with least issues you may face
    http://www.free-islam.com/Mazda/AhmedWorking.JPG
    [​IMG]

    Cheers

  2. Awafrican

    Awafrican Moderator Gold Member

    Joined:
    Feb 11, 2016
    Posts:
    3,544
    Trophy Points:
    113
    Location:
    Canada
    Ratings:
    +2,816 / -11
    So what are all the parts and tools you need? Any pictures please upload directly here using the upload button so that they're hosted here and we don't loose them, it also prevents imbedding issues.

    Awafrican, via a mobile device, Nov 2, 2022
    #2
    • Like Like x 2
  3. Easter Bunny

    Easter Bunny Professional Engineer Motorhead Platinum Member

    Joined:
    Feb 11, 2016
    Posts:
    3,143
    Trophy Points:
    113
    Location:
    Earth
    Ratings:
    +3,432 / -19
    umm the " woo woo" noise can be made to go away with a friction modifier in the transmission fluid.

    though if you were experiencing torque steer your lsd was bad anyway

    • Like Like x 1
  4. Ahmed Bahgat

    Ahmed Bahgat Greenie Member

    Joined:
    Sep 12, 2022
    Posts:
    11
    Trophy Points:
    3
    Location:
    Australia
    Ratings:
    +6 / -0
    Yes, but I tried everything and just makes it quiet it a bit, but it stays, also the old LSD was rattling, in fact one of the side pinions is completely loose

    Friction modifies are bad, I think, for the synchros

    Cheers

  5. Easter Bunny

    Easter Bunny Professional Engineer Motorhead Platinum Member

    Joined:
    Feb 11, 2016
    Posts:
    3,143
    Trophy Points:
    113
    Location:
    Earth
    Ratings:
    +3,432 / -19
    They are not bad for the synchros it's what the transmission was designed for

    Easter Bunny, via a mobile device, Nov 3, 2022
    #5
  6. Awafrican

    Awafrican Moderator Gold Member

    Joined:
    Feb 11, 2016
    Posts:
    3,544
    Trophy Points:
    113
    Location:
    Canada
    Ratings:
    +2,816 / -11
    Still waiting for part numbers etc... Otherwise this thread is kind of pointless

    Awafrican, via a mobile device, Nov 3, 2022
    #6
    • Like Like x 3
  7. Ahmed Bahgat

    Ahmed Bahgat Greenie Member

    Joined:
    Sep 12, 2022
    Posts:
    11
    Trophy Points:
    3
    Location:
    Australia
    Ratings:
    +6 / -0
    Hello

    Been very busy, I have the word document with all the parts I bought from mazda-parts,com, I will try to upload it

    The most impotrant tool is a 20 Ton press, I got for 200 AU$, along with 2 and 3 legs pullers, however, I can put also the full list of tools that I needed for the job, but let me upload the parts needed first

    Cheers

    Hello

    This is the diff I bought from the UK, very happy with it, completely silent

    https://shop.quaife.co.uk/shop/atb-differentials/differentials/mazda-3-mps-atb-differential/

    Cool

    Do you think I should use friction modifier even if I have a helical diff and not the clutch pack OEM diff? I was thinking of adding it, but I thought I do not need it now after changing the diff

    Cheers

    This is the document I managed to get with all the gearbox internal parts and from it I managed to get all the part numbers I need

    Cheers


    I made over 40 videos on my youtube channel however my audience are mostly Arab people, but on most of the videos I still speak English as my 18 years old son does not speak Arabic, on the other hand, regardless of the language, I am sure it will help you visually, if you are interested let me know, here is a sample in fast/normal motion but there are more in normal motion



    Cheers


    Attached Files:

    Last edited by a moderator: Nov 4, 2022
  8. Easter Bunny

    Easter Bunny Professional Engineer Motorhead Platinum Member

    Joined:
    Feb 11, 2016
    Posts:
    3,143
    Trophy Points:
    113
    Location:
    Earth
    Ratings:
    +3,432 / -19
    The only reason to use it is to eliminate the chatter from the lsd. I haven't run any in my car for the last 90 k miles and haven't noticed any problems other than the woo woo noise so no you don't need it

    Easter Bunny, via a mobile device, Nov 4, 2022
    #9
    • Like Like x 1
  9. Awafrican

    Awafrican Moderator Gold Member

    Joined:
    Feb 11, 2016
    Posts:
    3,544
    Trophy Points:
    113
    Location:
    Canada
    Ratings:
    +2,816 / -11
    Could you please upload the word docs themselves not as zip files.

    Awafrican, via a mobile device, Nov 4, 2022
    #9
  10. Ahmed Bahgat

    Ahmed Bahgat Greenie Member

    Joined:
    Sep 12, 2022
    Posts:
    11
    Trophy Points:
    3
    Location:
    Australia
    Ratings:
    +6 / -0

    I did not get the option to download doc file, just the zip file but I will try again later today

    Cheers


    Last edited by a moderator: Nov 4, 2022
    • Like Like x 1
  11. Awafrican

    Awafrican Moderator Gold Member

    Joined:
    Feb 11, 2016
    Posts:
    3,544
    Trophy Points:
    113
    Location:
    Canada
    Ratings:
    +2,816 / -11
    That'd to do it, thank you for trying.

    Awafrican, via a mobile device, Nov 4, 2022
    #11
    • Like Like x 1
  12. Ahmed Bahgat

    Ahmed Bahgat Greenie Member

    Joined:
    Sep 12, 2022
    Posts:
    11
    Trophy Points:
    3
    Location:
    Australia
    Ratings:
    +6 / -0
    I can email you the documents if you wish, they are very useful and without the one with all parts for all shafts with prices I would not be able to find the parts I needed

    Cheers

  13. Awafrican

    Awafrican Moderator Gold Member

    Joined:
    Feb 11, 2016
    Posts:
    3,544
    Trophy Points:
    113
    Location:
    Canada
    Ratings:
    +2,816 / -11
    Appreciate that, actually if you converted to pdf then you could upload them as non zip if you were so inclined

    Awafrican, via a mobile device, Nov 4, 2022
    #13
  14. Ahmed Bahgat

    Ahmed Bahgat Greenie Member

    Joined:
    Sep 12, 2022
    Posts:
    11
    Trophy Points:
    3
    Location:
    Australia
    Ratings:
    +6 / -0
    Sure, I can convert them to PDF, I will try again

    Cheers

    This document has all the parts inside the gearbox grouped by shafts, prices are also included

    This document shows all the parts I have bought from both USA and Australia for my project of changing the diff


    Attached Files:

    Last edited by a moderator: Nov 6, 2022
    • Like Like x 3
